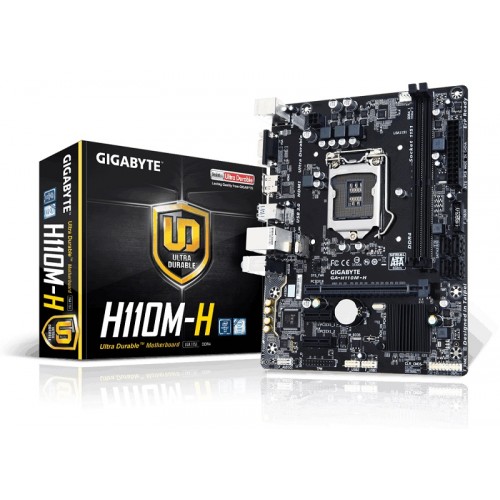

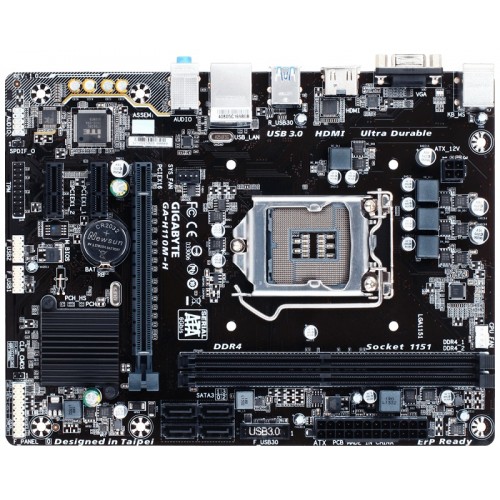

Gigabyte GA-H110M-H Micro ATX Motherboard

Basic Information

Supported CPU :

Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.

L3 cache varies with CPU

Chipset : Intel® H110 Express Chipset

BIOS : 1 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor  : Micro ATX Form Factor; 22.6cm x 17.4cm

Expansion Slots

PCI :

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conform to PCI Express 3.0 standard.)

2 x PCI Express x1 slots

(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Memory

Type : Dual channel DDR4 memory architecture

Slots :

2 x DIMM

Supported Memory :

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Maximum Memory : 32 GB

Graphics

Graphics :

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Max Shared Memory : 1024 MB

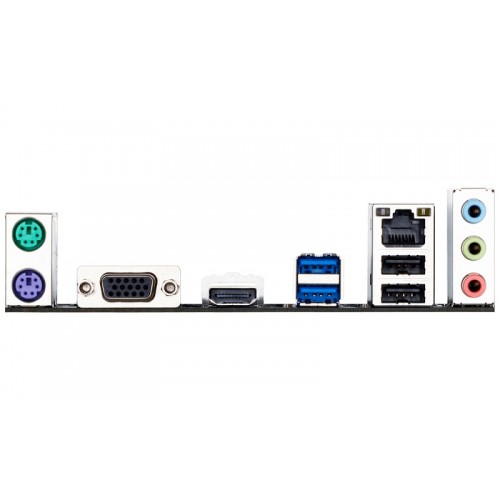

Connector & Ports

HDMI : : 1 x HDMI

D-Sub (s) : : 1 x D-Sub

USB (s) :

Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s) :

Realtek® GbE LAN chip (10/100/1000 Mbit)

Supported Storage

Chipset:

4 x SATA 6Gb/s connectors

Audio :

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Internal I/O Ports

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper

TPM (Trusted Platform Module )

1 x Trusted Platform Module (TPM) header

Warranty Information

Manufacturing Warranty : 03 Years
