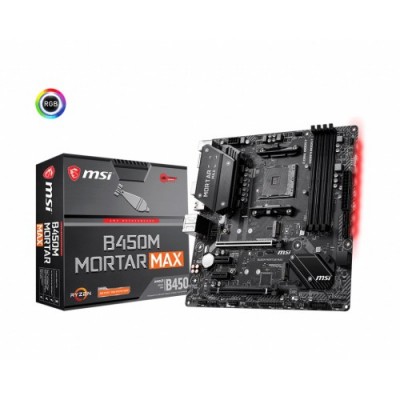

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard

Brand:MSI

Product Code:MSI B450M MORTAR MAX Military Style

Availability:Out Of Stock

Features:
Model: MSI B450M MORTAR MAX Military Style
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Supports DDR4, up to 4133(OC) MHz
Extended Heatsink Design
Lightning Fast Game experience

Regular Price:0.00৳

Special Price: Pls Visit Our Showroom

0 reviews / Write a review

Qty

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard is Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and Supports DDR4 Memory, up to 4133(OC) MHz. This Military Style Gaming Motherboard comes with Extended Heatsink Design where MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed. This motherboard also has Lightning Fast Game experience with 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology. The MSI B450M MORTAR MAX motherboard also has Core Boost with premium layout and fully digital power design to support more cores and provide better performance. DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability. MULTI-GPU with PCI-E STEEL ARMOR slot that supports 2-Way AMD Crossfire. By this Flash BIOS Button, you can simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

This Military Style Gaming Mother is comes with Flash BIOS Button, PS/2 Combo Port, USB 3.2 Gen1, USB 3.2 Gen2 (Type A+C), Golden audio jacks with S/PDIF, Arsenal Sticker Area which is Free for customization with personal style, Extended Heatsinks Design which is Leading heatsink design and extended for maximum cooling and performance, Heavy plated gaming heatsinks which Military style designed for maximum cooling, DDR4 Boost which can Optimized traces and isolated memory circuitry, Turbo M.2 which Delivering speeds up to 32 Gb/s using Gen3 x4, PCI-E Steel Armor that protecting VGA cards against bending and Audio Boost that optimized gaming audio using best compon. This exclusive gaming motherboard designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. This MSI motherboards feature with tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue. By using this motherboard, it Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. The MSI military motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. This motherboard is comes with High-quality materials and intelligent fan optimization help to cool all necessary components, which is critical to ensuring that the system is stable and always delivering the best performance. It can Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s. The Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.

This exclusive motherboartd comes with years of experience, MSI is no stranger to building high-performance motherboards. The R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. Here Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. This B450M MORTAR MAX motherboar comes with 03 years of warranty.

Basic Information

Supported CPU: Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

Chipset: AMD B450 Chipset

BIOS: Flash BIOS Button

Form Factor: M-ATX Form Factor

Audio

- Realtek ALC892 Code:

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

Expansion Slots

PCI

- 1 x PCIe 3.0 x16 slot (PCI_E1)

- Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors

- Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon

Graphics processors

- Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors

- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1

- 2 x PCIe 2.0 x1 slots2

M.2 Socket

AMD B450 Chipset:

- 1 x M.2 slots (M2_2, Key M)1

- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD CPU:

- 1x M.2 slot (M2_1, Key M)1

- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD

Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/

2260 /2280 storage devices

Memory

Type: DDR4

Slots

- 1 x PCIe 3.0 x16 slot (PCI_E1)

- Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors

- Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors

- Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors

- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)

- 2 x PCIe 2.0 x1 slots

Supported Memory

- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)

- Supports non-ECC UDIMM memory

- Supports ECC UDIMM memory (non-ECC mode)

Maximum Mamory: - support up to 64GB

Graphics

Graphics: Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors

Max Shared Memory: Maximum shared memory of 2048 MB

Connector & Ports

HDMI: 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

Display Port (s): 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz

USB (s) AMD B450 Chipset:

- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel

- 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU

AMD Processor:

- 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

LAN Port (s): 1 x Realtek RTL8111H-CG Gigabit LAN controller

Supported Storage

AMD B450 Chipset:

- 4 x SATA 6Gb/s ports1

- 1 x M.2 slots (M2_2, Key M)1

- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices

AMD CPU:

- 1x M.2 slot (M2_1, Key M)1

- Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD

Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/

2260 /2280 storage devices

Audio

- 7.1-Channel High Definition Audio

- Supports S/PDIF output

Internal I/O Ports

1 x 24-pin ATX 12V power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)

1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports)

1 x 4-pin CPU fan connector

3 x 4-pin system fan connectors

2 x 5050 RGB LED strip 12V connectors

1 x TPM module connector

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x Clear CMOS jumper

1 x Serial Port connector

1 x Parallel Port connector

DVI-D (s): Yes

Warranty Information

Manufacturing Warranty: 03 Years Warranty

Others

Special Features

RAID: AMD B450 Chipset

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

- Supports RAID 0 and RAID 1 for M.2 NVMe RAID

Bundled Software: - Support for Windows 10 64-bit

- Support for Windows 7 64-bit

(To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU)

MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
