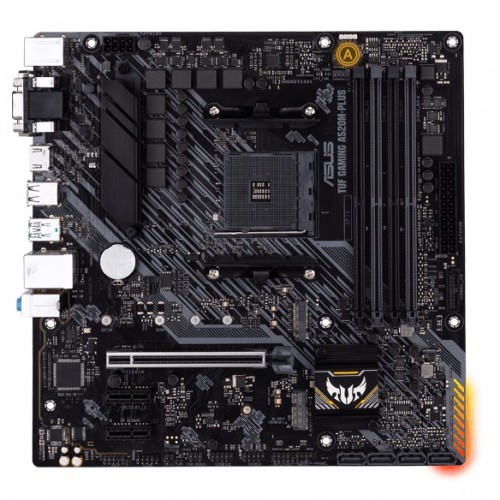

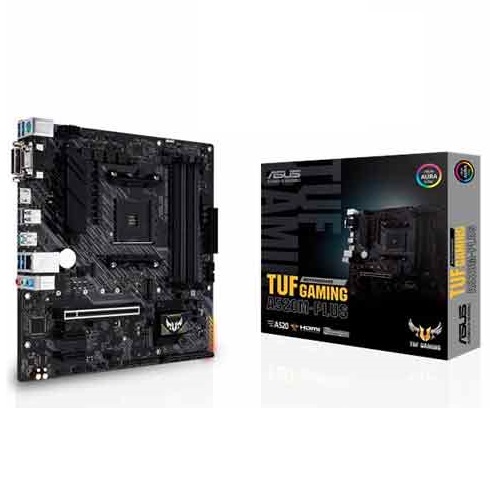

Asus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard

Basic Information

Supported CPU : AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors

Chipset : AMD A520

BIOS : 256 Mb Flash ROM, UEFI AMI BIOS

Form Factor : mATX Form Factor, 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Expansion Slot

PCI:
3rd Gen AMD Ryzen Processors

1 x PCIe 4.0 x16 (x16 mode)

3rd Gen AMD Ryzen with Radeon Graphics Processors

1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode)

1 x PCIe 3.0 x1

M.2 Socket : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

Memory

Type : Dual Channel Memory Architecture

Slots : 4 x DIMM slots

Supported Memory : 3rd Gen AMD Ryzen Processors

                                        4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/                                                          3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory

                                        3rd Gen AMD Ryzen with Radeon Graphics Processors

                                        4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/                                                          3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory

                                        CC Memory (ECC mode) support varies by CPU

Maximum Memory  : 128GB

Graphics

Graphics : Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors

                   1 x D-Sub

                   1 x DVI-D

                   1 x HDMI 2.1(4K@60HZ)

\

Connector & Ports

HDMI : 1 x HDMI 2.1(4K@60HZ)

D-Sub (s) : 1 x D-Sub

DVI-D (s) : 1 x DVI-D

USB (s) : Rear USB Port ( Total 7 )

                 1 x USB 3.2 Gen 2 port(s)(1 x Type-A)

                 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

                 2 x USB 2.0 port(s)(2 x Type-A)

                 Front USB Port ( Total 5 )

                 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

                 3 x USB 2.0 port(s)(3 x Type-A)

LAN Port (s) : Realtek L8200A 1Gb Ethernet, TUF LANGuard

Supported Storage : Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports

3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors :

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD A520 Chipset :

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

Audio

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

• Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese audio capacitors

Internal I/O Ports

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x Aura RGB Strip Header

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 with E key for Wi-Fi module

1 x SPI TPM header

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

TPM (Trusted Platform Module ) : 1 x SPI TPM header

Warranty Information

Manufacturing Warranty : 03 Years Warranty

Others

Special Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

- EZ update

- PC Cleaner

- System Information

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS TUF PROTECTION

- ASUS DIGI+ VRM

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot Core+

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design
