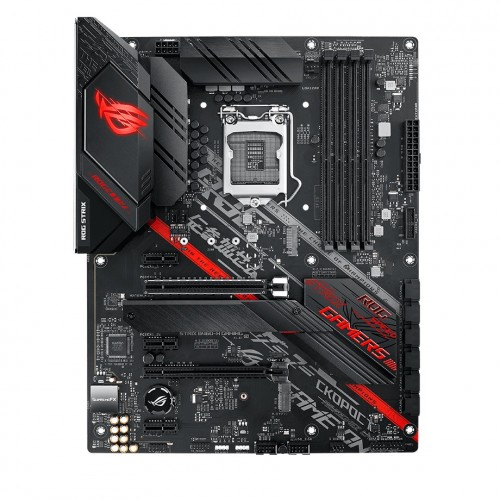

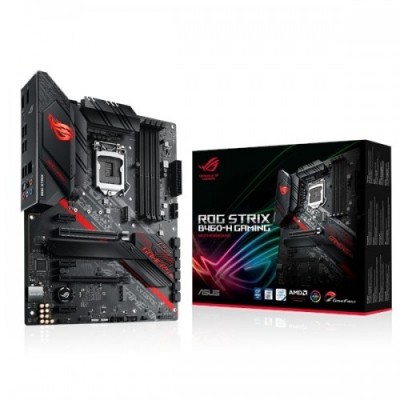

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard

Basic Information

Supported CPU :

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset : Intel B460

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

Form Factor : ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)

Expansion Slots

PCI :

Intel 10th Gen Processors:

1 x PCIe 3.0 x16

Intel B460 Chipset:

1 x PCIe 3.0 x16 (x4 mode)

3 x PCIe 3.0 x1

M.2 Socket :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

Memory

Type : Dual channel memory architecture

Slots : 4 x DDR4 DIMM

Supported Memory :

Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Supports Intel Extreme Memory Profile (XMP)

OptiMem

Maximum Memory : 128 GB

Graphics

Graphics :

Integrated Graphics Processor

1 x DisplayPort 1.4

1 x HDMI 1.4b

Supports AMD 2-Way CrossFireX Technology

Connector & Ports

HDMI : 1 x HDMI 1.4b

Display Port (s) : 1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz

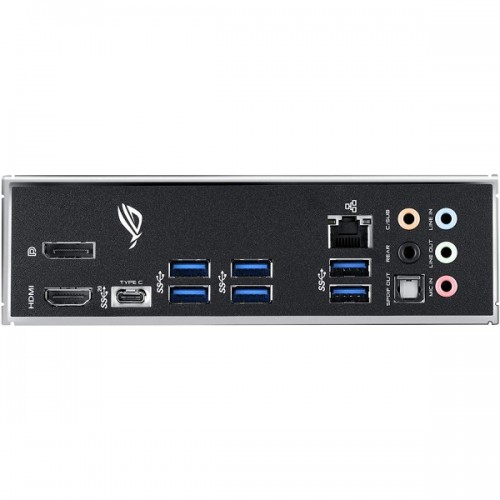

USB (s) :

Rear USB Port ( Total 7 )

• 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C)
• 6 x USB 3.2 Gen 1 port(s)(6 x Type-A)

Front USB Port ( Total 6 )

• 2 x USB 3.2 Gen 1 port(s)
• 4 x USB 2.0 port(s)

LAN Port (s) :

• Intel I219-V 1Gb Ethernet
• ASUS LANGuard

Supported Storage :

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel B460 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel Optane Memory Ready

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC

• - Dual OP Amplifiers
• - Impedance sense for front and rear headphone outputs
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• - Supports up to 32-Bit/192kHz playback

Audio Feature :

• - SupremeFX Shielding Technology
• - Rear audio USB Type-C port
• - Premium Japanese audio capacitors
• - Audio Cover

Internal I/O Ports :

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x AAFP connector
• 1 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x M.2 Socket 3
• 1 x M.2 with E key for Wi-Fi module
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x System panel connector

Warranty Information

Manufacturing Warranty : 03 Years

Others

Special Features :

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Procool

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

Rear audio USB Type-C connector
