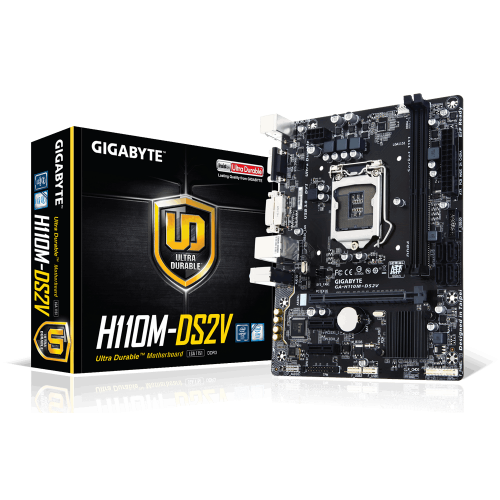

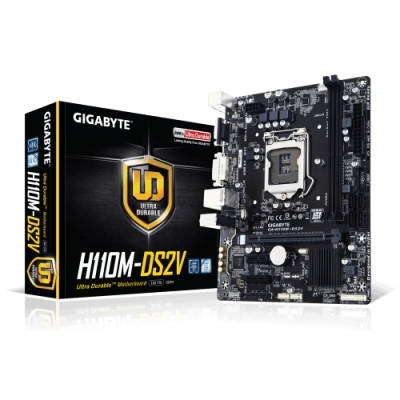

Gigabyte GA-H110M-DS2V Motherboard

Motherboard

Chipset Intel® H110 Express Chipset

Supported Processors: Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Max Memory: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)

Onboard Video Integrated Graphics Processor- Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1024 MB

Onboard Audio: Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Onboard LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)

Warranty: 3 Years
