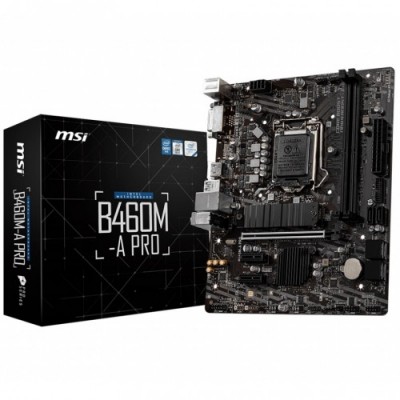

MSI Intel B460M-A Pro 10th Gen Intel Motherboard

Brand:MSI

Product Code:MSI Intel B460M-A Pro

Availability:Out Of Stock

Features:
Model: MSI Intel B460M-A Pro
Supports 10th Gen Intel Core / Pentium Celeron processors
M.2 Shield Frozr & Core Boost
Supports up to 2933MHz (Max) RAM
Turbo M.2, Audio Boost & Steel Armor

Regular Price:0.00৳

Special Price: Pls Visit Our Showroom

0 reviews / Write a review

Qty

MSI Intel B460M-A Pro 10th Gen Intel Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. The world’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.

Basic Information

Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket

Chipset Intel: B460

BIOS

1x 128 Mb flash
UEFI AMI BIOS
Multi-language
Form Factor: Miro-ATX Form Factor
9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

Expansion Slots

PCI

1x PCIe 3.0 x16 slot
2x PCIe 3.0 x1 slots

M.2 Socket

1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Memory

Type: Dual-Channel Architecture
Slots: 2x DDR4 memory slots

Supported Memory

Intel Core i7/ i9
Supports up to DDR4 2933 MHz
Intel Core i5 and below
Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory: 64GB

Graphics

1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory: 1GB

Connector & Ports

HDMI: 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz

USB (s)

Intel B460 Chipset
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

LAN Port (s): 1x Realtek 8111H Gigabit LAN controller

Supported Storage

Intel B460 Chipset
6x SATA 6Gb/s ports
1x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors

Audio

Realtek ALC892 Codec
7.1-Channel High Definition Audio

Internal I/O Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED
DVI-D (s): 1x DVI-D port, maximum resolution of 1920x1200 @60Hz

Warranty Information

Manufacturing Warranty: 03 Years Warranty

Others

Special Features: Intel B460 Chipset
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

MSI Intel B460M-A Pro 10th Gen Intel Motherboard
