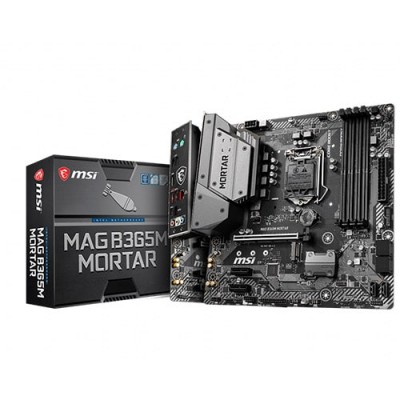

MSI MAG B365M MORTAR MILITARY STYLE MOTHERBOARD

MOTHERBOARD

Supported CPU : Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors; Socket: LGA 1151;

Chipset: Intel B365 Chipset

Memory: 4 DIMMs, Dual Channel DDR4 2666MHz

Graphics: 1 x PCI-E 3.0 x16 slot

Slots: 2 x PCI-E 3.0 x1 slots

Supported Storage: 1 x Turbo M.2 slot (Intel Optane Memory Ready) 6 x SATA 6Gb/s

LAN: Intel I219-V Gigabit LAN

Audio: 8-Channel(7.1) HD Audio with Audio Boost

USB Port: 6 x USB 3.1 (Gen1, A+C) + 6 x USB 2.0

Internal I/O Ports

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 6 x SATA 6Gb/s connectors; 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1 x 4-pin CPU fan connector; 2 x 4-pin system fan connectors; 1 x Front panel audio connector; 2 x Front panel connectors; 1 x Serial port connector; 1 x Parallel port connector; 1 x 3-pin RAINBOW LED connector; 1 x 4-pin RGB LED connector; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Clear CMOS jumper;

External I/O Ports

Mouse Port; Intel GAMING LAN; HD Audio Connectors; Keyboard Port; USB 2.0 ports; HDMI Port; USB 3.1 Gen1 Type-A ports; USB 3.1 Gen1 Type-A+C ports;

DIMENSIONS: 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

Form Factor: Micro ATX

HDMI: HDMI – Requires Processor Graphics

Warranty: 03 Years
