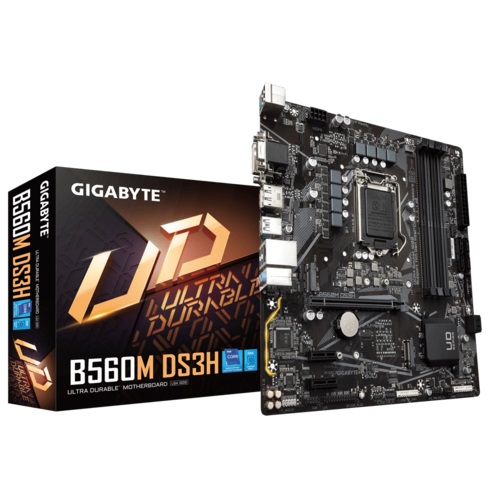

Gigabyte B560M DS3H Intel 10th and 11th Gen Micro ATX Motherboard

Basic Information

Supported CPU :

11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors

10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors

Chipset : Intel B560 Express Chipset

BIOS :

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm

Audio :

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Expansion Slots

PCI :

• 1 x PCI Express x16 slot, running at x16
• (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
• 2 x PCI Express x1 slots
• (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

M.2 Socket

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)

Memory

Type : Dual-channel memory architecture

Slots : 4 x DDR4 DIMM

Supported Memory :

11th Generation Intel Core i9/i7/i5 processors:

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory : 128 GB (32 GB single DIMM capacity)

Graphics

Graphics :

• Integrated Graphics Processor-Intel HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3
• * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• * Support for HDMI 1.4 version and HDCP 2.3.
• Support for up to 3 displays at the same time

Connector & Ports

HDMI : 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Display Port (s) : 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

D-Sub (s) : 1 x D-Sub port

DVI-D (s) : 1 x DVI-D port

USB (s)

• Chipset:
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports available through the internal USB headers
• Chipset+USB 2.0 Hub:
• 2 x USB 2.0/1.1 ports on the back panel

LAN Port (s) : Realtek GbE LAN chip (1000/100 Mbit)

Supported Storage

• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
• 6 x SATA 6Gb/s connectors
• Intel Optane Memory Ready

Audio : 3 x audio jacks

Internal I/O Ports

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 6 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x parallel port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

TPM (Trusted Platform Module ) : 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Warranty Information

Manufacturing Warranty : 3 years

Others

Special Features

• Support for APP Center
• @BIOS
• EasyTune
• Fast Boot
• Game Boost
• ON/OFF Charge
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Bundled Software

• Norton Internet Security (OEM version)
• Realtek 8118 Gaming LAN Bandwidth Control Utility
