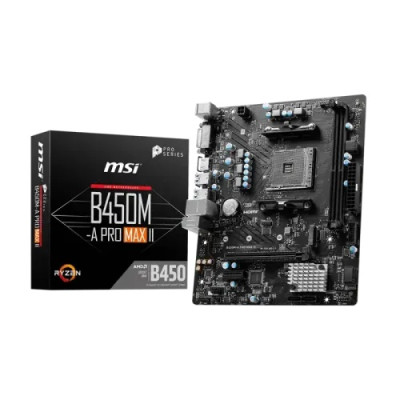

MSI B450M-A PRO MAX II AMD AM4 Motherboard

Basic Information

Supported CPU :

• Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors
• Socket AM4

Chipset : AMD B450

Form Factor :

• mATX
• 200mmx236mm

Audio :

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Expansion Slots

PCI :

• 1x PCI-E x16 slot
• 1x PCI-E x1 slot
• PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Memory

Type : DDR4

Slots : 2

Supported Memory :

• Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
• Supports Dual-Channel mode
• Supports non-ECC, UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Maximum Memory : 64GB

Graphics

Graphics :

• 1x HDMI Support HDMITM 1.4, maximum resolution of 4K 24Hz
• 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz

Connector & Ports

HDMI : 1x HDMI

DVI-D (s) : 1x DVI

USB (s) :

• 2x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 4x USB 3.2 Gen1 Type A (Rear)
• 2x USB 3.2 Gen1 Type A (Front)

LAN Port (s) : Realtek 8125 2.5Gbps LAN controller

Supported Storage :

• 1x M.2
• M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

RAID : Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Internal I/O Ports :

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 4x USB 2.0 ports
• 2x USB 3.2 Gen1 Type A ports

TPM (Trusted Platform Module ) : 1x TPM pin header(Support TPM 2.0)

Warranty Information

Manufacturing Warranty : 03 Years Warranty
