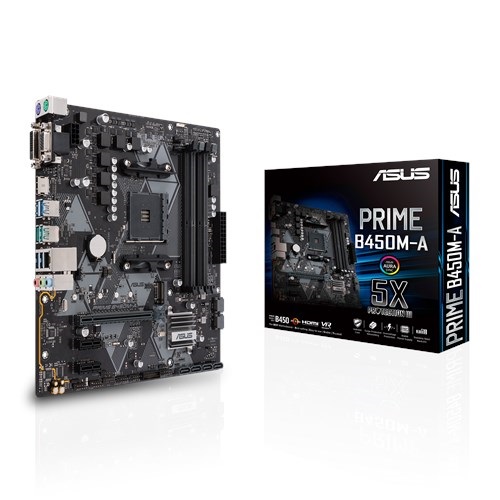

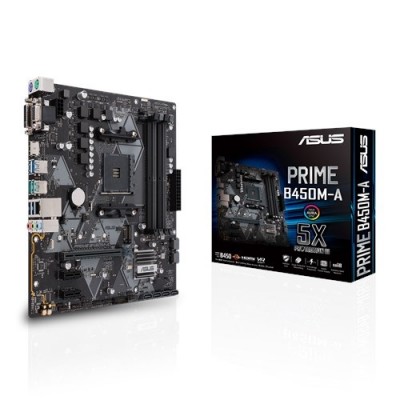

ASUS PRIME B450M-A AMD mATX Motherboard

Basic Information

Supported CPU : AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

Chipset : AMD B450

BIOS :

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Form Factor :

mATX Form Factor

9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

Expansion Slots

PCI :

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors

1 x PCIe 3.0/2.0 x16 (x16 mode)

AMD Ryzen™ with Radeon™ Vega Graphics Processor

1 x PCIe 3.0/2.0 x16 (x8 mode) *1

AMD Athlon™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

AMD B450 chipset

2 x PCIe 2.0 x1

M.2 Socket :

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

Memory

Type : Dual Channel DDR4 Memory Technology

Slots : 4 x DIMM

Supported Memory : DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

Maximum Memory : 64 GB

Graphics

Graphics :

Multi-VGA output support : HDMI/DVI-D/D-Sub ports

- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

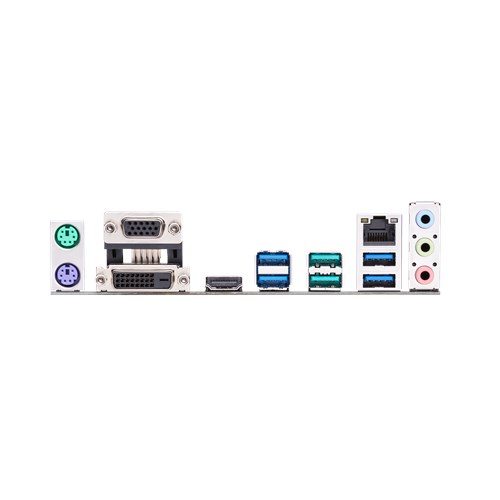

Connector & Ports

HDMI : 1 x HDMI port

D-Sub (s) : 1 x D-Sub

DVI-D (s) : 1 xDVI-D

USB (s) :

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

AMD B450 chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

AMD B450 chipset :

2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

AMD B450 chipset :

4 x USB 2.0/1.1 port(s) (4 at mid-board)

LAN Port (s)

• Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• ASUS LAN Guard

Supported Storage :

AMD B450 chipset :

4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

2 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

AMD Athlon™ with Radeon™ Vega Graphics Processors :

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2

Audio :

Realtek® ALC887 8-Channel High Definition Audio CODEC

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Internal I/O Ports

• 1 x Aura RGB Strip Header
• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x COM port(s) connector(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x Speaker connector

TPM (Trusted Platform Module ) : 1 x TPM header

Warranty Information

Manufacturing Warranty : 03 years
