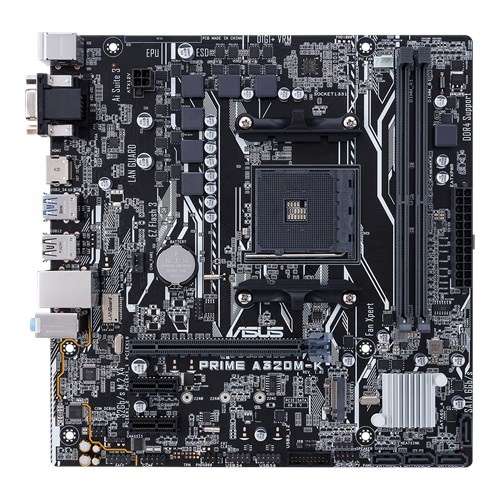

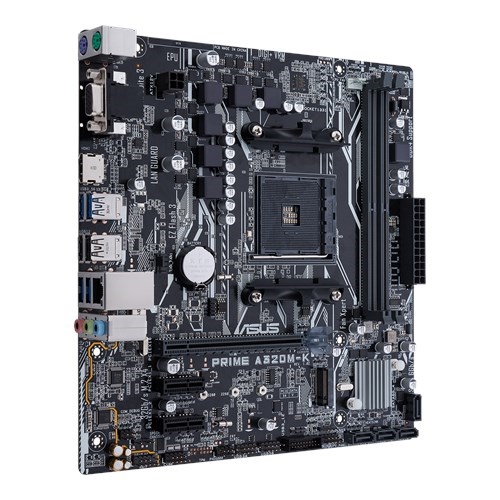

Asus Prime A320M-K AMD AM4 uATX Motherboard

Basic Information

Supported CPU

• AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4 Processors
• Supports CPU up to 8 cores
• Chipset: AMD A320

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
• Form Factor : mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Expansion Slots

• PCI
• AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode)
• AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode)
• AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode)
• AMD A320 chipset- 2 x PCIe 2.0 x1
• M.2 Socket: 1 x M.2 Socket 3

Memory

• Type: DDR4
• Slots: 2
• Supported Memory: DDR4 2400/2133 MHz Un-buffered Memory
• Maximum Mamory:  32GB

Graphics

• Graphics: Multi-VGA output support : HDMI/RGB ports
• Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
• Max Shared Memory: 2048 MB

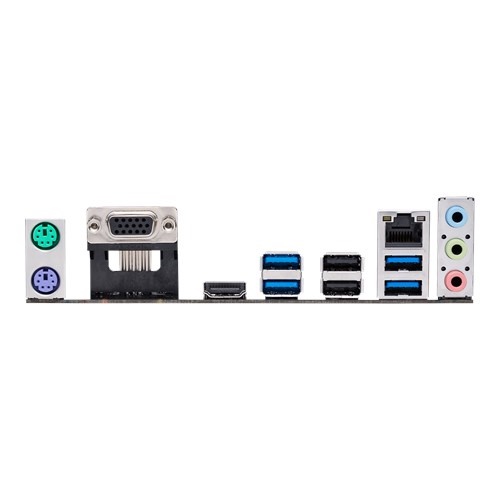

• Connector & Ports
• HDMI: 1 x HDMI

USB (s):

• 4 x USB 3.1 Gen 1 (blue)
• 2 x USB 2.0
• LAN Port (s): 1 x LAN (RJ45) port(s)

Supported Storage

• AMD A320 chipset :
• 4 x SATA 6Gb/s port(s), gray,
• Support Raid 0, 1, 10
• AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• AMD 7th Generation A-Series/ Athlon™ X4 Processors :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
• AMD Athlon™ with Radeon™ Vega Graphics Processors :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
• Audio Back I/O Ports 3 x Audio jack(s)
• 1 x Front panel audio connector(s) (AAFP)
• Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x Speaker connector
• D-Sub (s): 1 x D-Sub

Warranty Information

Manufacturing Warranty: 03 years
