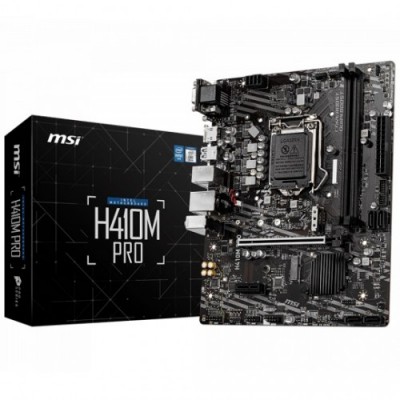

MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard

Basic Information

Supported CPU: Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket

Chipset Intel: H410

Form Factor: Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Expansion Slots

PCI

• 1x PCIe 3.0 x16 slot (From CPU)
• 1x PCIe 3.0 x1 slot (From PCH)

M.2 Socket

• 1x M.2 slot (Key M)
• -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
• 1x M.2 slot with E key for WiFi module only

Memory

• Type: Dual Channel Memory Architecture
• Slots: 2 x DIMM

Supported Memory

• Intel Core i7/ i9
• Supports up to DDR4 2933 MHz
• Intel Core i5 and below
• Supports up to DDR4 2666 MHz
• Supports non-ECC, un-buffered memory
• Supports Intel Extreme Memory Profile (XMP)
• Maximum Mamory :  64GB

Graphics

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
• 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
• Max Shared Memory: 1GB

Connector & Ports

HDMI

• 1x HDMI 1.4 port, maximum resolution of 4096x2160 @30Hz

USB (s):

• Intel H410 Chipset
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

LAN Port (s): 1x Intel I219V Gigabit LAN controller

Supported Storage

• Intel H410 Chipset
• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
• -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

Audio

• Realtek ALC892 Codec
• 7.1-Channel High Definition Audio

Internal I/O Ports

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x Serial port connector
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 4x EZ Debug LED

DVI-D (s): 1x DVI-D port, maximum resolution of 1920x1200 @60Hz

Warranty Information

• Manufacturing Warranty: 03 Years
