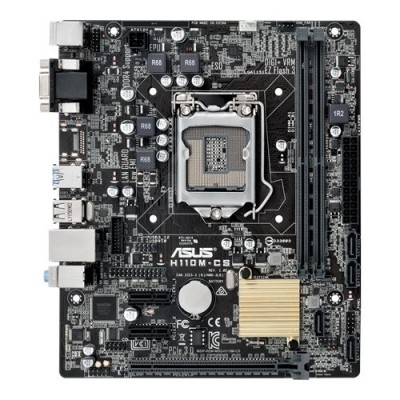

Asus H110M-CS 7th/6th Gen micro-ATX Motherboard

Basic Information

Supported CPU:

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H110

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information

Form Factor

uATX Form Factor

8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm )

Expansion Slots

PCI

• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 2 x PCIe 2.0 x1

Memory

Type: DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Slots : 2 x DIMM

Supported Memory

Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Maximum Mamory The maximum memory frequency supported varies by processor

Graphics

Graphics:

VGA output support : RGB port

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Max Shared Memory: 1024 MB

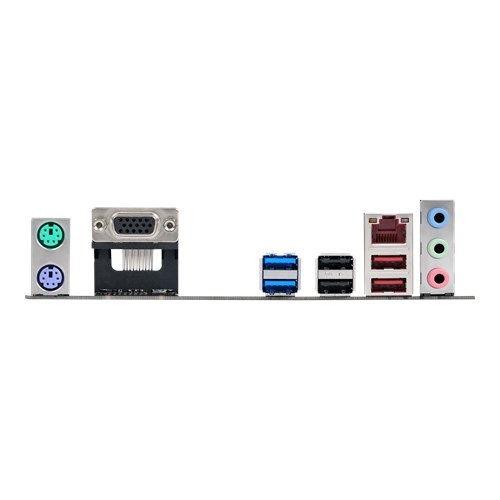

Connector & Ports

USB (s)

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® H110 chipset :

6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)

LAN Port (s): Realtek® RTL8111H

Supported Storage

Intel® H110 Chipset :

4 x SATA 6Gb/s port(s), gray,

Intel® Rapid Storage Technology supports*2

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Internal I/O Ports

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x LPT header

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x System panel(s)

1 x 14-1 pin TPM connector

1 x Chassis intrusion header

Warranty Information

Manufacturing Warranty: 03 Years
