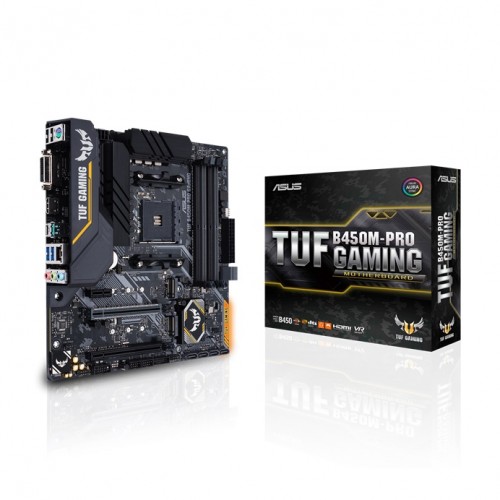

Asus TUF B450M-PRO GAMING AMD AM4 mATX Motherboard

  • Product Code:Asus TUF B450M-PRO
  • Availability:In Stock
    • Features

    • Key Features

      • Model: TUF B450M-PRO GAMING
      • AMD AM4 Socket for Ryzen 5000/ 5000 G/ 4000 G/ 3rd/2nd/1st Gen Processors
      • DDR4 4400MHz support
      • Dual M.2, and native USB 3.1 Gen 2
      • Aura Sync RGB LED lighting

    0 reviews / Write a review

    Description

    Asus TUF B450M-PRO GAMING AMD AM4 mATX Motherboard

    The Asus TUF B450M-PRO GAMING Motherboard supports AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors. It comes with Aura Sync RGB LED lighting, DDR4 4400MHz support, Dual M.2, and native USB 3.1 Gen 2. This motherboard features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality. It offers exclusive DTS Custom audio that delivers positional cues to stereo headphones, helping you to pinpoint enemies and action. Asus TUF B450M-PRO GAMING Motherboard comes with Fan Xpert 2+ that ensures every fan achieves the best balance of cooling performance and acoustics. Military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability. Its TUF Capacitors offer+20% temperature tolerance and 5X-longer lifespan. Lastly, TUF MOSFETS are military-grade MOSFETs with lower RDS(on). SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. With x4 PCI Express 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. The Asus TUF B450M-PRO GAMING Motherboard comes with 3 years warranty.

    Specification

    Basic Information
    Supported CPUAMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    ChipsetAMD B450
    BIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
    Form FactormATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Expansion Slots
    PCI3rd/2nd/1st Gen AMD Ryzen Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD Athlon with Radeon Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (max at x4 mode)
    AMD B450 chipset
    1 x PCIe 2.0 x16 (max at x4 mode)
    1 x PCIe 2.0 x1
    Memory
    TypeDDR4
    Slots4 x DIMM
    Supported Memory4400(O.C)/ 3533(O.C)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU
    Maximum MemoryMax. 128GB
    Graphics
    GraphicsIntegrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
    Multi-VGA output support : HDMI/DVI-D ports
    - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    Connector & Ports
    HDMI1 x HDMI
    DVI-D (s)1 x DVI-D
    USB (s)3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :
    2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
    3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :
    1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
    AMD B450 chipset :
    1 x USB 3.1 Gen 2 port(s) (1 at back panel, )
    AMD B450 chipset :
    2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
    AMD B450 chipset :
    6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
    LAN Port (s)Realtek RTL8111H
    TUF LANGuard
    Supported Storage3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD Athlon with Radeon Vega Graphics Processors :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
    3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors :
    2 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    AMD B450 chipset :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
    4 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
    Audio3 x Audio jack(s)
    Internal I/O Ports2 x Aura RGB Strip Header
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x COM port header
    1 x Speaker connector
    Others
    Special FeaturesASUS TUF PROTECTION
    - ASUS SafeSlot: Protect your graphics card Investment
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: Precision control for stable power
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution & MOS Heatsink
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-Slot
    - ASUS Q-DIMM
    Warranty Information
    Manufacturing Warranty3 Years
