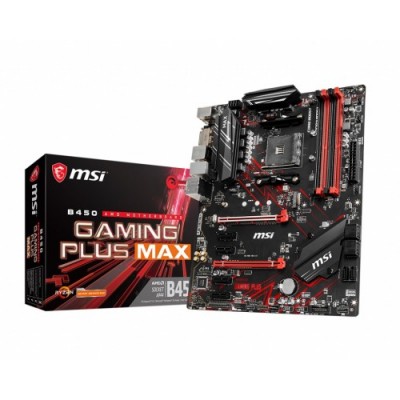

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard

  • Brand:MSI
  • Product Code:B450 GAMING PLUS MAX
  • Availability:Out Of Stock
    • Features:
    • Model: MSI B450 GAMING PLUS MAX

      Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen

      Lightning Fast Game experience

      Supports DDR4, up to 4133(OC) MHz

      Core Boost, DDR4 Boost, Audio Boost

    MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard

    MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and DDR4 Memory, up to 4133(OC) MHz. You will get Lightning Fast Game experience with TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology. Here is added Core Boost with premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability with Audio Boost that reward your ears with studio grade sound quality for the most immersive gaming experience. And also you simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.


    This AMD MSI motherboard is built with Flash BIOS Button, Gaming Device Port, LAN Port, AMD Turbo USB 3.2 Gen2 and Golden Audio Jacks. In this motherboard the Core Boost supports more cores and provide better performance. Gaming heatsinks with Passion Red scheme for maximum cooling and performance, DDR4 Boost optimized traces and isolated memory circuitry, Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI. The PCI-E Steel Armor protecting VGA cards against bending and EMI and PCI-E Steel Slot protecting VGA cards against bending and Audio Boost is built with amplifier which optimized gaming audio using best components, with Nahimic3. MSI motherboards are designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. MSI motherboards are DIY FRIENDLY which is feature with tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. For high performance cooling is essential to sustain intense workloads. MSI motherboards feature a heavy duty heatsink on the MOSFETs for reliable processor power delivery and numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it. It's BIOS and Software complete your high performance experience with an array of performance enhancing software from MSI. This MSI AMD motherboards are designed with both device and physical compatibility in mind. Pin-headers, SATA, and USB connectors are positioned away from other components and devices. A comprehensive DDR memory Qualified Vendor List (QVL), the result of extensive memory testing and tuning, makes it easier to pick from compatible products. This Exclusive MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one and also deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.


    Each MSI motherboard is built based on the specific topic in order to match different favours and tastes. The MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. In this motherboards, MSI Mystic Light provides a complete function to control the RGB light all around the ecosystem. Select the available colors from the palette to match your favorite and mood. This AMD motherboards also combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes. The MSI B450 GAMING PLUS MAX Motherboard comes with 03 years of warranty.


    Purchase MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard from IT Palace at best price in Cumilla, BD.

    In Bangladesh, you can get original MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard From IT Palace. We have a large collection of latest  Motherboard to purchase. Order Online Or Visit our Shop to get yours at lowest price. The MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard comes with 3 Years Warranty.


    What is the price of MSI B450 GAMING PLUS MAX AMD Motherboard in Bangladesh?

    The latest price of MSI B450 GAMING PLUS MAX AMD Motherboard in Bangladesh is 0৳. You can buy the MSI B450 GAMING PLUS MAX AMD Motherboard at best price from our website or visit any of our showrooms.

    Basic Information


    Supported CPU

    • Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
    • Chipset: AMD B450 Chipset
    • Form Factor: ATX Form Factor
    • Audio: 7.1-Channel High Definition Audio

    Expansion Slots

    PCI

    • 1 x PCIe 3.0 x16 slot (PCI_E1)
    • 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
    • Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
    • Athlon with Radeon Vega Graphics support x4 mode
    • 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
    • 4 x PCIe 2.0 x1 slots1

    M.2 Socket: - 1 x M.2 slot (Key M)

    Memory

    Type: DDR4

    Slots

    4 x DDR4 memory slots, support up to 64GB

    Supported Memory: - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)

    - For AMD Ryzen Gen3 (R5/R7/R9)

    - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)

    - For AMD Other CPU

    - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)

    - Dual channel memory architecture

    - Supports non-ECC UDIMM memory

    - Supports ECC UDIMM memory (non-ECC mode)

    Maximum Mamory: MAX MEMORY (GB): 64


    Graphics

    - 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1

    - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1

    - Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors


    Max Shared Memory: - Maximum shared memory of 2048 MB

    Connector & Ports

    HDMI: - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

    USB (s)


    AMD B450 Chipset:

    - 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

    - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector

    - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal

    USB 2.0 connectors)

    AMD CPU:- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel


    LAN Port (s):- 1 x Realtek 8111H Gigabit LAN controller


    Supported Storage

    AMD CPU:

    2 x SATA 6Gb/s ports1

    1 x M.2 slot (Key M)1

    Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

    AMD B450 Chipset:

    4 x SATA 6Gb/s ports


    Audio: -7.1-Channel High Definition Audio


    Internal I/O Ports

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 6 x SATA 6Gb/s connectors
    • 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    • 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
    • 1 x 4-pin CPU fan connector
    • 1 x 4-pin water-pump-fan connector
    • 4 x 4-pin system fan connectors
    • 1 x TPM module connector
    • 1 x Front panel audio connector
    • 2 x System panel connectors
    • 1 x Serial port connector
    • 1 x Parallel port connector
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
    • 2 x 5050 RGB LED strip 12V connectors


    DVI-D (s): 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz

    Warranty Information

    Manufacturing Warranty: 03 years warranty

    Others

    Bundled Software:

    - Support for Windows 10 64-bit

    - Support for Windows 7 64-bit

    - To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU.
