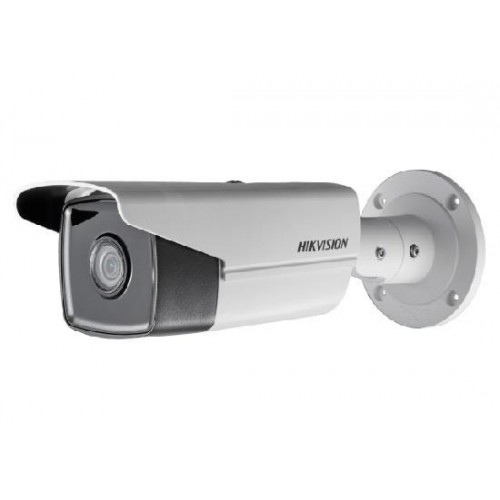

Hikvision DS-2CD2T43G0-I5 IR Fixed Bullet Network IP Camera

Camera Feature

Image Sensor :

1/3" Progressive Scan CMOS

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate:

256Kbps~16Mbps

Triple Streams:

Yes

Effective Pixels:


Max. Image Resolution:

2688 × 1520

Frame Rate:

50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR/ROI/HLC

Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Target Cropping:

No

ROI:

1 fixed region for main stream and sub-stream

Day/Night Switch:

Day/Night/Auto/Schedule

IR Distance : Up to 50 m IR range

Others :

Behavior Analysis:

Line crossing detection, intrusion detection

Line Crossing Detection:

Cross a pre-defined virtual line

Intrusion Detection:

Enter and loiter in a pre-defined virtual region

Detection/Recognition:

Face Detection

Lens

Focal Length :

2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°

6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°

8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°

Angle of View :

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Others

Max. Image Resolution:

2688 × 1520

Frame Rate:

50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR/ROI/HLC

Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Target Cropping:

No

ROI:

1 fixed region for main stream and sub-stream

Day/Night Switch:

Day/Night/Auto/Schedule

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate:

256Kbps~16Mbps

Triple Streams:

Yes

Weather Proof:

IP67

Physical Specification

Dimension :

Camera: Φ 105 × 299.7 mm (Φ 4.1" × 11.8")

Package: 386 × 156 × 155 mm (15.2" × 6.14" × 6.1")

Weight :

Camera: Approx. 1180 g (2.6 lb.)

With Package: Approx. 1700 g (3.7 lb.)

Power :

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption: -I5:12 VDC, 0.6A, max. 7.5W

PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W

Interface

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

Others :

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Focus:

Fixed
