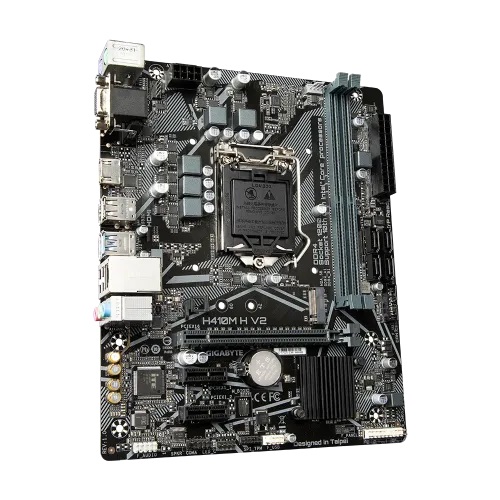

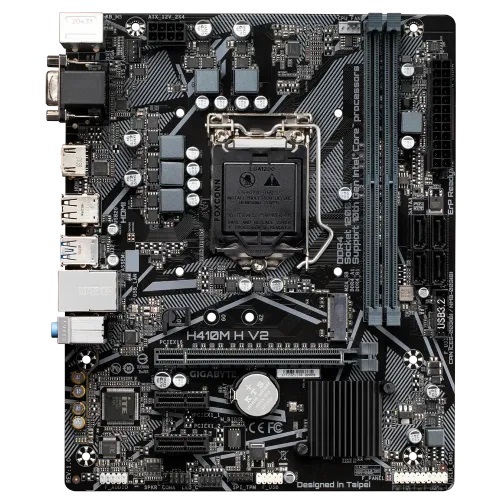

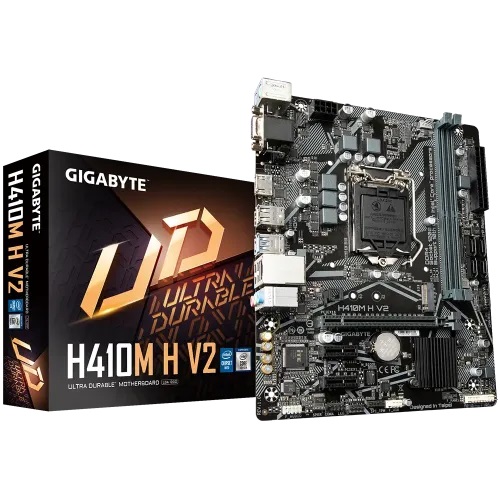

GIGABGTE H410M H V2 10th Gen Micro ATX Motherboard

Basic Information

Supported CPU :

Support for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package

Chipset :

Intel H470 Express Chipset

BIOS :

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor :

Micro ATX Form Factor: 22.6cm x 18.5cm

Audio :

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Expansion Slots

PCI :

1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 3.0 standard.)

Supports up to ASPM L1.2 power management protocols.

Memory

Type : DDR4

Slots : 2 x DIMM

Supported Memory :

Intel Core i9/i7 processors:

Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel Core i5/i3/Pentium/Celeron processors:

Support for DDR4 2666/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory : 64GB (32 GB single DIMM capacity)

Graphics

Graphics :

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Max Shared Memory : 512MB

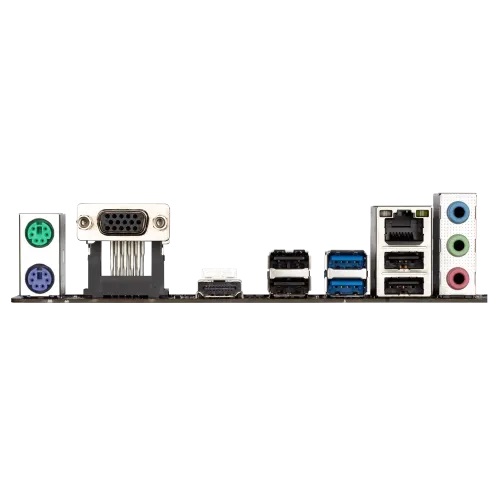

Connector & Ports

HDMI : 1 x HDMI port

D-Sub (s) : 1 x D-Sub port

USB (s) :

Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

LAN Port (s) : Intel GbE LAN chip (1 Gbit/100 Mbit)

Supported Storage :

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Intel Optane Memory Ready

M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

RAID : Support for RAID 0, RAID 1, RAID 5, and RAID 10

Internal I/O Ports :

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

TPM (Trusted Platform Module ) :

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features :

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS

Ambient LED

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software :

• Norton Internet Security (OEM version)
• cFosSpeed

Warranty Information

Manufacturing Warranty : 03 Years
